vertical form fill seal packaging machine

Introduction

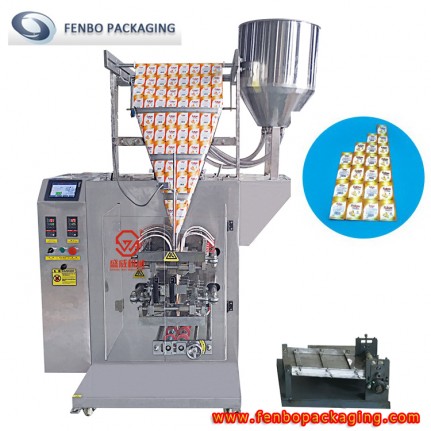

For the FBSW-384, it is a kind of vertical form fill seal packaging machines which specialized for the packaging of semi-liquid vertical ffs packing the products into the 4 side seal sachet style.

Feature

-This kind of vertical form fill seal packaging machine adopt by high precision pump press feeding system, suitable for the packaging of semi-liquid products, such as jelly, shampoo, ketchup sauce, chili sauce, oil and etc.

-This model of liquid sachet packaging machine adopt by frequency control, make sure a high precision measuring of products.

-4 lanes production output per time, high working effective

-Made of stainless steel, all machine structures are in accordance with food hygiene standards selected design, rust and durable, easy operation and maintenance, the material contact with the container material are food grade SUS304.

-Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.

-This machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.

-Photocell control system can realize automatic mark-tracking- cutting.

-Intelligent temperature control by temperature controller, let the sealing temperature better and balanced.

-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.

Technical Parameters

Sachet style of form fill seal

Working process of vertical form fill seal packaging machine FBSW-384

Film rolling->forming->filling->sealing->finishing

Pneumatic components

For more video about SW384 vertical form fill seal packaging machine, please visit our
