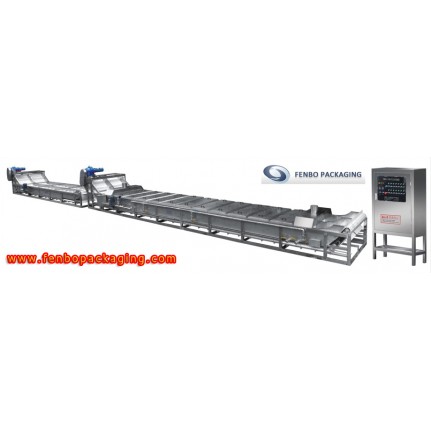

tunnel pasteurizer

Introduction

For the FB-BSSJ-900, it is a kind of pasteurizer machine that adopt by the electrical heating method for pasteurized the foods packaged applied by all kind of flexible packaging, the production output is up to 1.5~3.5ton/hour.

Feature

-Except the motor and bearings, other parts all are made of stainless steel, which fully meets the requirements of export food hygiene.

-This tunnel pasteurizer adopts 304 stainless steel mesh belt, which has the characteristics of high strength, small elasticity, not easy deformation and easy maintenance.

-This machine adopts steam or electrical heating. With automatic control steam inlet device, minimize energy waste.

-Adopt speed-regulating reduction motor to make the speed of conveyor belt adjustable.

-Reducer is driven by Planetary Bevel-type step less speed controller. Heat by steam and automatically control temperature. High efficiency. Low energy consumption and easy operation.

-Drive method: the tunnel pasteurizer and cooling tunnel process adopt by the integrated drive,” forward type gear reducer” +” inverter motor”.

-Heating system:heating by the external circulating steam, the temperature can be control within ±2℃;Controlled by the temperature controller, saving more steam volume; adopting by the pipeline steam mixer, the lower noise and the more precise temperature.

-Water source: adopting by the external circulatingwater pump, the intake sink included a filter.

-Heat preservation property: the heat preservation controlled by both side of the tunnel, upper of tunnel pasteurizer included the covers.

-Frame oftunnel: The frame of tunnel is welding by the square tube of 80*40*3mm.

-Cooling tunnel: installing the forward type water drumming device, avoid the products to be sinke down.

-Drying tunnel: adopting by 3-section drying method of “air conditioning fan + air knife”.

Technical Parameters

Application of packaging

How does a tunnel pasteurizer work in the workshop?

-transport by conveyor

After the product filling inside the packaging, the packaging machine will auto discharged the packaging in the conveyor,let them auto transport to the tunnel pasteurizer.

-products pasteurization/cooling/drying

pasteurization of the pre-packaged foods by creating the steam, in order to achieve the purpose of killing some certain of bacterial which hidden in foods and its packaging, plus a cooling and drying process accordingly.

-finished products packing

After the drying process, the finished products will be auto discharged inside the conveyor and to be transported to working table for the final packing.
