full automatic spouted stand up pouch filling machines
Stand up pouch filling machines for baby food-FBZCX5B1
|
Model number |
FB-ZCX-5B-1 |
|||
|
Application |
Filling product |
Liquid/semi-liquid |
||
|
Pouch style |
baby food pouch packaging |
|||
|
types of pouch filling machine |
spout bag filling machine |
|||
|
MOQ |
1set |
|||
|
Leading time |
standard configuration |
35days |
||
|
non-standard configuration |
45days |
|||
|
Packing |
Wooden carton |
|||
stand up pouch filling machines

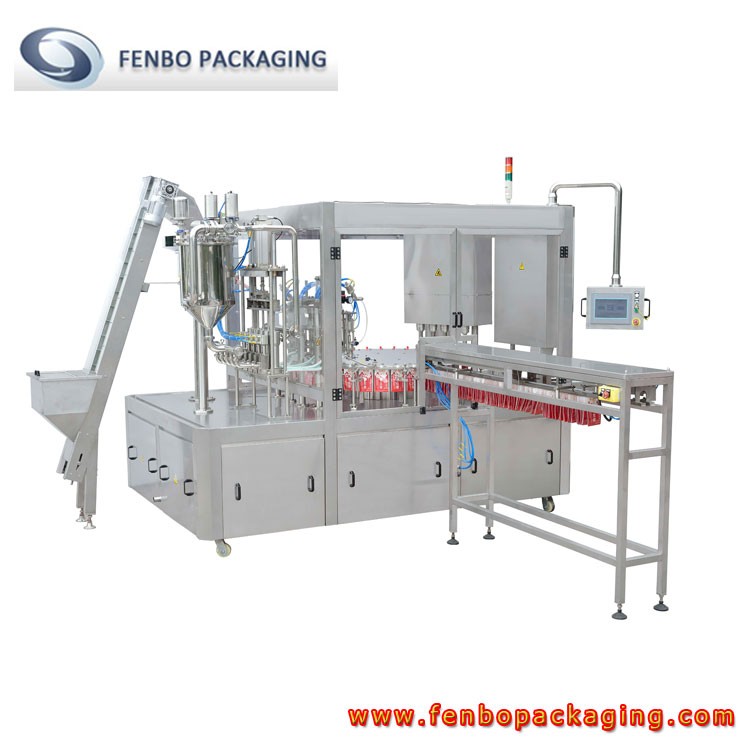

Introduction of ZCX-5B-1 stand up pouch filling machines
For the FB-ZCX-5B-1, it is also named as baby food pouch filling machine, owning all the function of FB-ZCX-5B, and specialized for the packaging of spout bags with baby food pouch caps.
Features of ZCX-5B-1 stand up pouch filling machines
-The stand up pouch filling machines is clean and bright,and is made by stainless steel except rack part reach to the existing standard of food industry.
-Electric and pneumatic combined driving are used,resulting in stable driving,Filling,downward-capping and cap-screwing are fully automatic in order to save man power and reduce cost.
-High efficiency,several pouch bags can be filled,downward-capping and cap-screwing at the same time.
-Revision device of photoelectric sensors are installed in the machine,If cap jam in the machine, it can timely alert operator to inspect and adjust the equipment in order to avoid waste.
-According to customer’demand, we can add or decrease auto bag feeding device,cover,PLC ,CIP connect,nitrogen gas connect etc.
-Piston quantitative filling, precise quantitative filling,no drip leakage filling head.
-Filling quantity can be adjusted,automatic capping,precise capping,solid capping,no leakage,adjustable capping speed.
-Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
-High reliability,convenient operation,wide applicability,high performance.
Technical Parameters of ZCX-5B-1 stand up pouch filling machines
|
Filling material |
Fruit puree/yogurt |
|
|
Quantity of machine filling nozzle |
5 |
|
|
Available filling capacity |
50~300ml |
300~500ml |
|
Filling and capping speed(pouch/hour) |
6000~7200 |
4500~5400 |
|
Material of machinery |
#304 stainless |
|
|
Power supply |
AC 380V /50Hz (customized based on different voltages) |
|
|
Using air pressure |
0.5～0.7Mpa |
|
|
Maximum air conumption |
0.5m3/min |
|
|
Machine dimension |
3300*2440*1900mm(included the pouch loader) |
|
Basic component of ZCX-5B-1 stand up pouch filling machines
1-Machine bottom flame
2-Pouch loader
4-Dusty-proof cover
5-Pneumatic control cabinet
6-Material pump (hopper)
7-Filling device group
8-Cleaning device group
9-Plastic cap elevator(optional)
10-Vibrating tray & plastic cap loading device
11-Capping device group

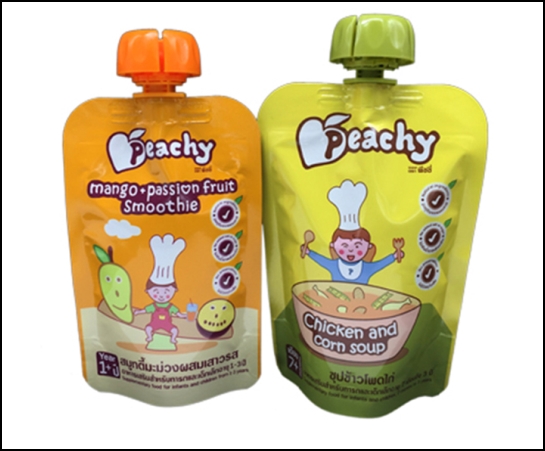

Applications of ZCX-5B-1 stand up pouch filling machines
Working process of ZCX-5B-1 stand up pouch filling machines
-Fixed position filling/Air blowing
-Spout cleaning
-Plastic cap loading and capping
-Pouch discharging
Pneumatic components of ZCX-5B-1 stand up pouch filling machines
Imported pneumatic components: Schneider, Mitsubishi, Omron, Siemens and etc., let the operation system more stable and reliable.
*Partial pneumatic components brand can be optional by customer’s requirement
