rotary style pouch filling packing machine

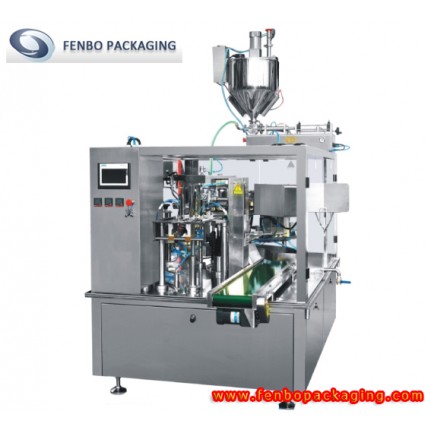

rotary liquid packaging pouch fill and seal packing machines-FBY200
|
Model number |
FB-Y200 |
|
application |
liquid/semi-liquid |
|
packing machine types |
|
|
MOQ |
1set |
|
Leading time |
25-35days |
|
Packing |
Wooden carton |
Introduction
For the FB-Y200 , it is a kind of premade pouch fill and seal machines which used for the filling and sealing of packaging for liquid/semi-liquid products.
Feature
-Suitable for the packaging of semi-liquid products, such as jelly, shampoo, ketchup sauce, chili sauce, oil, juice, liquid milk and etc.
-This kind of pouch fill and seal machines equipped with a metering pump, low noise and high efficiency.
-Fully automatic, Clip the bag, open the bag, fill the bag. Sealing and output the packages.
-Easy to operate, the machine adopts Imported PLC control, and human-machine interface with touch screen control system.
-Frequency control system, adopts Frequency Controller, the operator can regulate the packaging speed.
-Automatic detection, if the bag is not opened or not opened completely, there will be no feeding and no sealing, so that the pouch can be reused. In this way, you can avoid wasting materials, and reduce production costs.
-Use no oil vacuum pump, avoid polluting the environment in the production.
-Stainless steel, main parts of the machine are made with Stainless steel, so that the machine can meet food hygiene standard, and get a longer service life.
-On the machine, the spare part which contacts with the material and pouch conforms to the standard of food sanitation.
-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.
Technical Parameters
|
Model |
Y200 |
||
|
Available filling capacity |
30-1000ml(depend on packaging products characteristic) |
||
|
Requirement of pouch dimension |
Width: |
90mm-200mm |
|
|
Length: |
100mm-350mm |
||
|
Packing speed(pouch/min) |
30-50(depend on the detailed packaging products and capacity) |
||
|
Material of machinery |
SUS304 |
||
|
Voltage |
AC 380V /50Hz (customized based on different voltages) |
||
|
Power supply |
2.3KW |
||
|
Packaging accuracy |
≦100gram |
±1gram |
|
|
＞100gram |
±1% |
||
|
Maximum air consumption |
≦0.6m3/min |
||
|
Additional components of machine |
metering pump |
||
|
Machine dimension |
1.56mx2.3mx2.43m |
||
Application of products and packaging
Additional components
Working process of FB-Y200 pouch fill and seal machines
-Bag Giving-Feed bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.
-Date Coding-Ribbon printer, Ink-jet printer for optional.
-Bag Opening-There are vacuum caps to open the bag, and an opening detection device inserts into the opened bag to expanding it and detect if it is open or not.
-Product Filling A- Measured and filled bymetering pump.
-Product Filling B-Gas flush for your option.
-Heat sealing A-To seal the bag with a couple of heat sealing air bar.
-Heat sealing B-To seal the bag strong enough.
-Forming and output-To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically. (The sealing pattern with net or straight lines for your option).
Pneumatic components
*Partial pneumatic components brand can be optional by customer’s requirement
