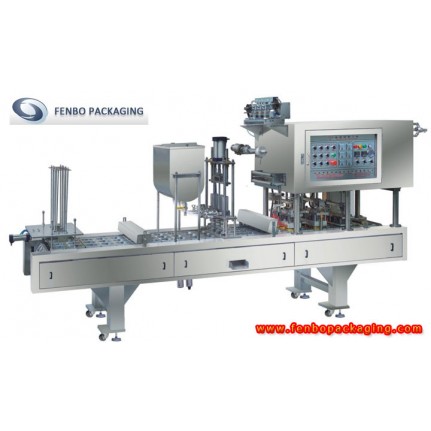

plastic cup filling and sealing machine

Introduction

For the FB-CFB-C, it is a kind of full automatic plastic cup filling and sealing machine specialized for the filling of jelly, water, juice, milkand so on liquid products which packaged by the tall plastic cups and sealer film.

Feature

-This kind of plastic cup filling and sealing machine is suitable for the filling and sealing of any beverage with different viscosity and paste products filled by the different filling system, such as jelly, milk, ice cream, butter, pulp, juice, mineral water etc.

-This machine required the sealer film as the sealing materials

-This model of water cup filling machine adopts latest technologies, such as no drop, no splash, no bubble filling, PID intelligent temperature controller, floating seal, PLC + touch panel control, inverter speed control etc.

-This machine can fill and seal multi-cups at one time, high effectively, accuracy, quickly.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-Optional Device: fruit grain feeding, Dust proof cover, CIP system, Date inkjet and etc.

-The machine can be customized made according to your requirements and your sample cup.

-User friendly setting done via touch-screen, optional Multi language for chosen.

-All components adopt international famous brand. And the machine can adopt PLC system according to your requirements.

-The other function can be added according to your requirements such as CIP clean system, UV and etc.

Technical Parameters

Packaging materials

Working process of FB-CFB-C plastic cup filling and sealing machine

-Cup manual feeding

-Dust Clean

-Filling 1

-Filling 2

-Sealing film unwinding

-Date Printing

-Flat Sealing

-Photoelectric correction

-line sealing

-trimming

-products push out and conveying

Pneumatic components

For more video about CFB-C plastic cup filling and sealing machine, please visit our
