hand feeding spout pouches filling machine,hand feeding spout pouch filling machine,liquid spout pouch filling machine

Introduction

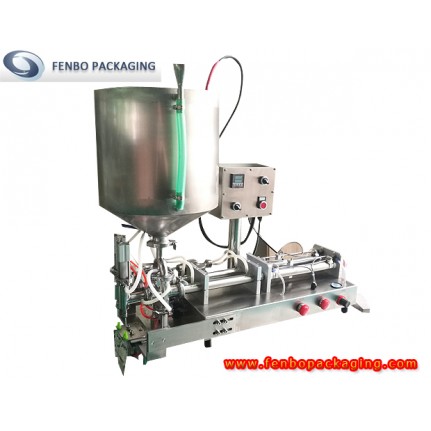

For the FB-KGF-II, it is un-standard configuration model in our hand feeding spout pouch filling machine series, equipped with the whole machine constant temperature heating and internal circulation system, and specialized for filling all kinds of low flowing of fluids, such as the peanut butter, fruit puree and etc.

Feature

-This kind of hand feeding spout pouches filling machine uses the compressed air the for controlling, it has high safety especially suitable for use under the explosion-proof requirements.

-It won't generate static electricity and hemp electricity phenomenon; the machine does not need to connect the grounding wire.

-Due to the pneumatic controlling and fixed filling volume, the filling volume is therefore characteristic with high precision, which can be controlled within 0.3%.(this is basis on maximum filling volume).

-In the case of emergency stop, you just need to turn off the pneumatic switch, the piston will be pulled automatically back to the starting position, and the machine will stop filling.

-Hand-held capping system solve the plastic cap locking problemperfectly, greatly improve whole the working efficiency.

Technical Parameters

Application

Working principle of hand feeding spout pouches filling machine FB-KGF-II

-manual pouch loading

-fixed position filling (auto version or manual version)

-manual capping

Characteristic of FB-KGF-II

-The pushing and pulling of the air cylinder, it drives the cylinder piston do the reciprocating motion, which makes the material cylinder to generate the negative pressure.

-When the cylinder is pushed forward, it pulls the piston to the back, and inside the material cylinder, the negative pressure absorbs the material into the inlet pipe from the material hopper.

-When the cylinder pulling back, it pushing the piston forward, the material will be absorbed to the filling mouth from the pipe, then, it fills to the empty pouch(the filling head open and close automatically when the material is absorbed in and out).

-This piston type filling machine is a single, simple mechanical action for the each filling, so it has a high filling accuracy and stability for spout pouch.

For more video about FB-KGF-II hand feeding spout pouches filling machine, please visit our
