envasadora vertical

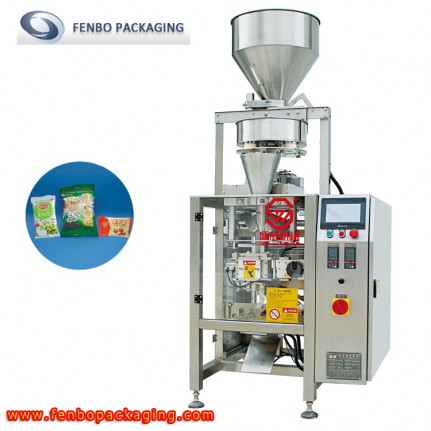

For the FBSW-320D, it is a kind of envasadora vertical automatica which specialized for the packaging of granules and vertical packaging into the pillow seal pouch style.

Feature

-This kind of envasadora vertical adopt by turn plate volumetric cup feeding system, suitable for the packaging of granules products, such as dried fruit, sugar, small biscuit and etc.

-This model of maquina envasadora vertical adopt by servo motor control, make sure the max filling volume can be up to 2KG.

-Made of stainless steel, all machine structures are in accordance with food hygiene standards selected design, rust and durable, easy operation and maintenance, the material contact with the container material are food grade SUS304.

-Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.

-This machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.

-Photocell control system can realize automatic mark-tracking- cutting.

-Intelligent temperature control by temperature controller, let the sealing temperature better and balanced.

-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.

Technical Parameters

Sachet style of form fill seal

Working process of envasadora vertical FBSW-320D

Film rolling->forming->filling->sealing->finishing

Pneumatic components

For more video about SW320D envasadora vertical, please visit our
