full automatic spouted stand up pouch filling machines

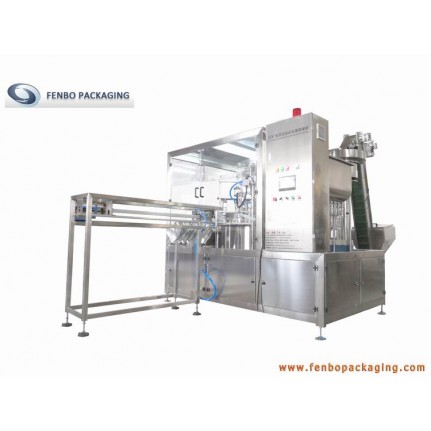

Spouted pouch doy pack filling and packing machines-FBZCX3B
|
Model number |
FB-ZCX-3B |
|||
|
Application |
Filling product |
Liquid/semi-liquid |
||
|
Pouch style |
||||
|
types of pouch filling machine |
||||
|
MOQ |
1set |
|||
|
Leading time |
standard configuration |
35days |
||
|
non-standard configuration |
45days |
|||
|
Packing |
Wooden carton |
|||
Introduction
For the FB-ZCX-3B, this is the standard configuration model in our 3 filling nozzle full automatic doy pack filling machine series, additionally equipped servo-driven filling and capping, plastic cap elevator, CIP system, dust proof cover and etc. this model is suitable for the production with requirement on the high hygiene and working effect.
Feature
-The model of doy pack machines is clean and bright, and is made by stainless steel except rack part reach to the existing standard of food industry.
-Electric and pneumatic combined driving are used, resulting in stable driving, Filling, downward-capping and cap-screwing are fully automatic in order to save man power and reduce cost.
-High efficiency, several pouch bags can be filled, downward-capping and cap-screwing at the same time.
-Revision device of photoelectric sensors are installed in the machine, If cap jam in the machine, it can timely alert operator to inspect and adjust the equipment in order to avoid waste.
-According to customer’s demand, we can add or decrease auto bag feeding device, cover, PLC, CIP connect, nitrogen gas connect etc.
-Piston quantitative filling, precise quantitative filling, no drip leakage filling head.
-Filling quantity can be adjusted, automatic capping, precise capping, solid capping, no leakage, adjustable capping speed.
-Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
-High reliability, convenient operation, wide applicability, high performance.
Technical Parameters
|
Filling material |
All kind of liquid or semi liquid |
||||
|
Quantity of machine filling nozzle |
3 |
||||
|
Available filling capacity |
50~300ml |
300~1L |
1L~2L |
2L~3L |
4~5L |
|
Filling and capping speed(pouch/hour) |
3500~4300 |
2700~3200 |
1800~2100 |
1400~1600 |
900~1200 |
|
Material of machinery |
#304 stainless |
||||
|
Power supply |
AC 380V /50Hz (customized based on different voltages) |
||||
|
Using air pressure |
0.5～0.7Mpa |
||||
|
Maximum air consumption |
0.5m3/min |
||||
|
Machine dimension |
2400*2200*1900m(included the pouch loader) |
||||
Basic component
1-Machine bottom flame
2-Pouch loader
4-Dusty-proof cover
5-Pneumatic control cabinet
6-Material pump (hopper)
7-Filling device group
8-Cleaning device group
9-Plastic cap elevator(optional)
10-Vibrating tray & plastic cap loading device
11-Capping device group
Application
Working process of ZCX-3B doy pack machines
-Fixed position filling/Air blowing
-Spout cleaning
-Plastic cap loading and capping
-Pouch discharging
Pneumatic components
Imported pneumatic components: Schneider, Mitsubishi, Omron, Siemens and etc., let the operation system more stable and reliable.
*Partial pneumatic components brand can be optional by customer’s requirement
