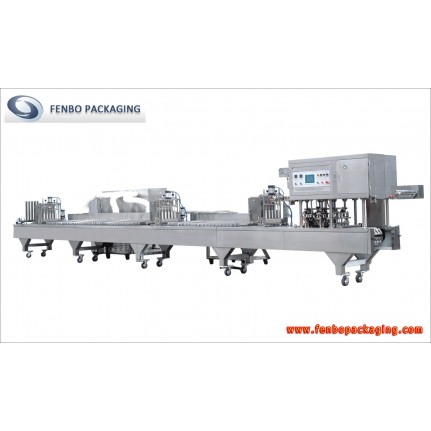

Multi layers jelly pudding full automatic cup filler sealer packaging machine-FBCFB3S

Model number	FB-CFB-3S
Filling product	multi-layer jelly/pudding/chocolate jam
Types of packaging machines	cup filler packaging machine
MOQ	1set
Leading time	55-65days
Packing	Wooden carton

Product Details

cup filler machine

Introduction

For the FB-CFB-3S, it is a kind of non-standard configuration & customized designed automatic cup filler sealer machine for the production of multi-colors jelly or pudding filling and sealing. The finished cup of filling products has the characteristic of clear layers, no water droplets, smooth trimming and tight sealing. Which packaged by the small or middle size plastic cup and lidding film.

Feature

- This model of cup filler machine is suitable for the filling and sealing of multi-colored and layered jelly, pudding, chocolate jam.

-This model of machine adopts latest technologies, such as no drop, no splash, no bubble filling, PID intelligent temperature controller, floating seal, PLC + touch panel control, inverter speed control etc.

-This machine can fill and seal multi-cups at one time, high effectively, accuracy, quickly.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-The machine can be customized made according to your requirements and your sample cup.

-User friendly setting done via touch-screen, optional Multi language for chosen.

-All components adopt international famous brand. And the machine can adopt PLC system according to your requirements.

-The other function can be added according to your requirements such as CIP clean system, UV and etc.

Technical Parameters

Model	CFB2S-4	CFB2S-6	CFB2S-8	CFB2S-12	CFB3S-4	CFB3S-6	CFB3S-8	CFB3S-12
Available filling capacity	≤300ml
Filling and sealing speed(cup/hour)	3000-3500	5000-5500	6500-7000	10000-10500	2500-3000	4000-4500	5000-6000	8000-8500
Material of machinery	SUS304
Power supply	AC 380V /50Hz
Speed control	frequency control
Working Pressure	0.6-0.8MPa
Air consumption(m³/min）	0.6	0.9	0.65	1.0	1.6	0.8	1	1.2
Power(KW)	10	13	10	15	20	15	16	20
