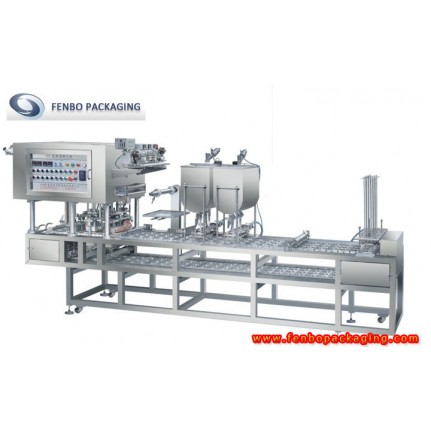

plastic food containers filling and sealing packing machine-FBCFD4
|
Model number |
FB-CFB-4 |
|
Filling product |
liquid/semi-liquid |
|
sealing machine types |
|
|
MOQ |
1set |
|
Leading time |
25-35days |
|
Packing |
Wooden carton |
For theFB-CFB-4, it is a kinds of full-automatic food container packing machine specialized for the filling ofice cream, sauce, pickled vegetable, rice wine and etcand so on liquid/semi-liquid which packaged by the tall plastic food containers and sealer film.
Feature
-This kind of filling and sealing machine is suitable for the filling and sealing of ice cream, sauce, pickled vegetable, rice wine and etc.
-This machine required the sealer film as the sealing materials.
-This model of food filling and sealing machine adopts latest technologies, such as no drop, no splash, no bubble filling, PID intelligent temperature controller, floating seal, PLC + touch panel control, inverter speed control etc.
-This machine can fill and seal multi-cups at one time, high effectively, accuracy, quickly.
-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
-Optional Device: fruit grain feeding, Dust proof cover, CIP system, Date inkjet and etc.
-The machine can be customized made according to your requirements and your sample cup.
-User friendly setting done via touch-screen, optional Multi language for chosen.
-All components adopt international famous brand. And the machine can adopt PLC system according to your requirements.
-The other function can be added according to your requirements such as CIP clean system, UV and etc.
Technical Parameters
|
Filling material |
ice cream, sauce, pickled vegetable, rice wine and etc |
|||
|
Speed mold |
transducer |
|||
|
Available filling capacity |
《500ml |
|||
|
Sub model number |
CFD4-2 |
CFD4-3 |
CFD4-4 |
|
|
fill and seal speed(cup/hour) |
1200-2400 |
1800-3600 |
2400-4800 |
|
|
Air consumption(3/min) |
0.4 |
0.5 |
0.6 |
|
|
Total powder(KW) |
5.5 |
6 |
7 |
|
|
Material of machinery |
SUS304 |
|||
|
Power supply |
AC 380V /50Hz (customized based on different voltages) |
|||
|
Using air pressure |
0.6-0.8Mpa |
|||
|
Machine dimension |
3.5mx0.8mx1.7m |
3.6mx0.8mx1.7m |
3.6mx1.2mx1.7m |
|
Application of packaging
Working process of filling and sealing machine FB-CFB-4
-Cup manual feeding
-Filling
-Sealing film unwinding
-Date Printing
-Flat Sealing
-vacuum
-line sealing
-trimming
-products push out and conveying
Pneumatic components
