automatic pouch filling and sealing machine

Introduction

For the FB-R200D , it is a kind of non-standard configuration premade pouch machine which used for the filling and sealing of packaging for some granular mixed food, such asmixed dried food snack.

Feature

-Suitable for packing some granular mixed products and requiring high measuring accuracy, such as nut + dried fruit, which need to precisely counter the filling quantity.

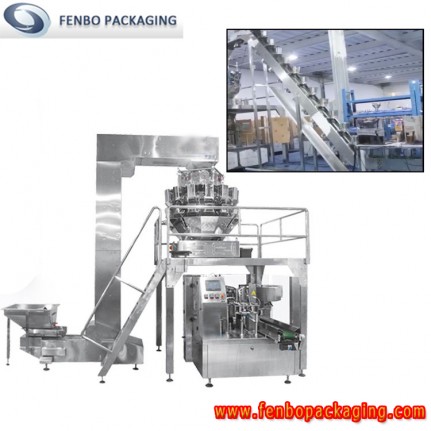

-This kind of automatic pouch filling and sealing machine equipped with a multi-heads electronic weigher a z bucket elevator, and a working platform(for large gram products filling),as well as the vibrator feeder /counter filler(for small gram products filling).

-Fully automatic, Clip the bag, open the bag, fill the bag. Sealing and output the packages.

-Easy to operate, the machine adopts Imported PLC control, and human-machine interface with touch screen control system.

-Frequency control system, adopts Frequency Controller, the operator can regulate the packaging speed.

-Automatic detection, if the bag is not opened or not opened completely, there will be no feeding and no sealing, so that the pouch can be reused. In this way, you can avoid wasting materials, and reduce production costs.

-Use no oil vacuum pump, avoid polluting the environment in the production.

-Stainless steel, main parts of the machine are made with Stainless steel, so that the machine can meet food hygiene standard, and get a longer service life.

-On the machine, the spare part which contacts with the material and pouch conforms to the standard of food sanitation.

-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.

Technical Parameters

Application of products and packaging

Additional components

Working process of FB-R200D automatic pouch filling and sealing machine

-Bag Giving-Feed bags in the bag magazine, which can move up and down, and you can feed bags very easily when it moves down, and when it moves up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

-Date Coding-Ribbon printer, Ink-jet printer for optional.

-Bag Opening-There are vacuum caps to open the bag, and an opening detection device inserts into the opened bag to expanding it and detect if it is open or not.

-Product Filling A- Measured and filled by HTKZ-10 weigher & Z-elevator.

-Product Filling B- Measured and filled byvibrator feeder /counter filler

-Heat sealing A-To seal the bag with a couple of heat sealing air bar.

-Heat sealing B-To seal the bag strong enough.

-Forming and output-To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically. (The sealing pattern with net or straight lines for your option).

Pneumatic components

*Partial pneumatic components brand can be optional by customer’s requirement

For more video about R200D automatic pouch filling and sealing machine, please visit our
